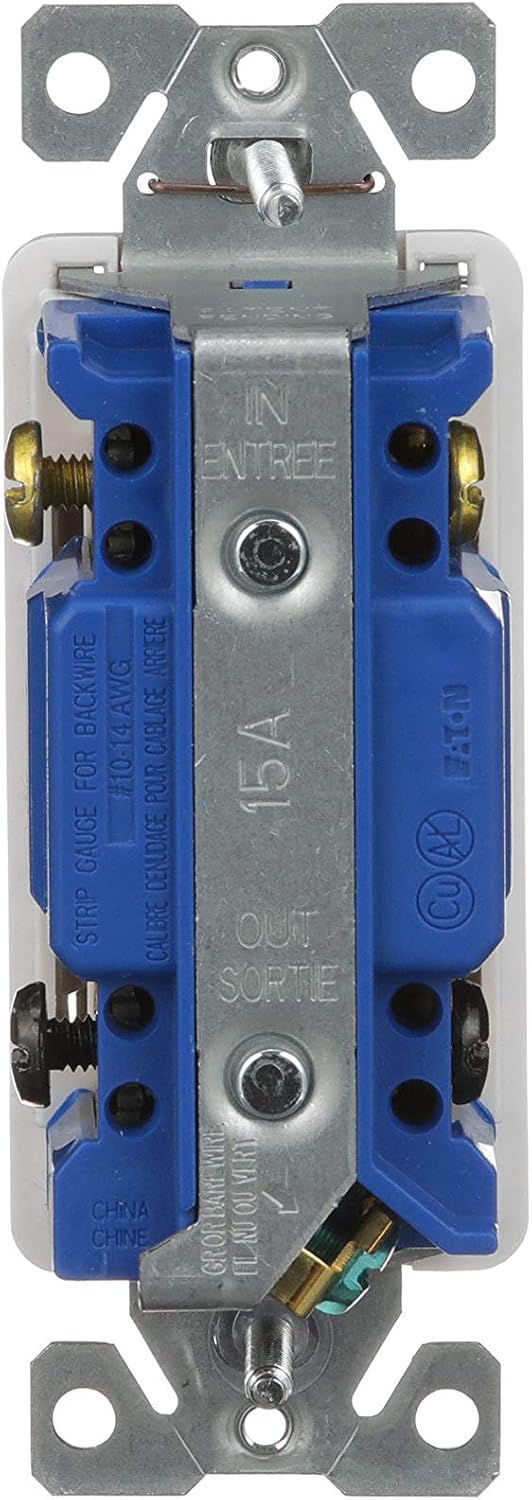

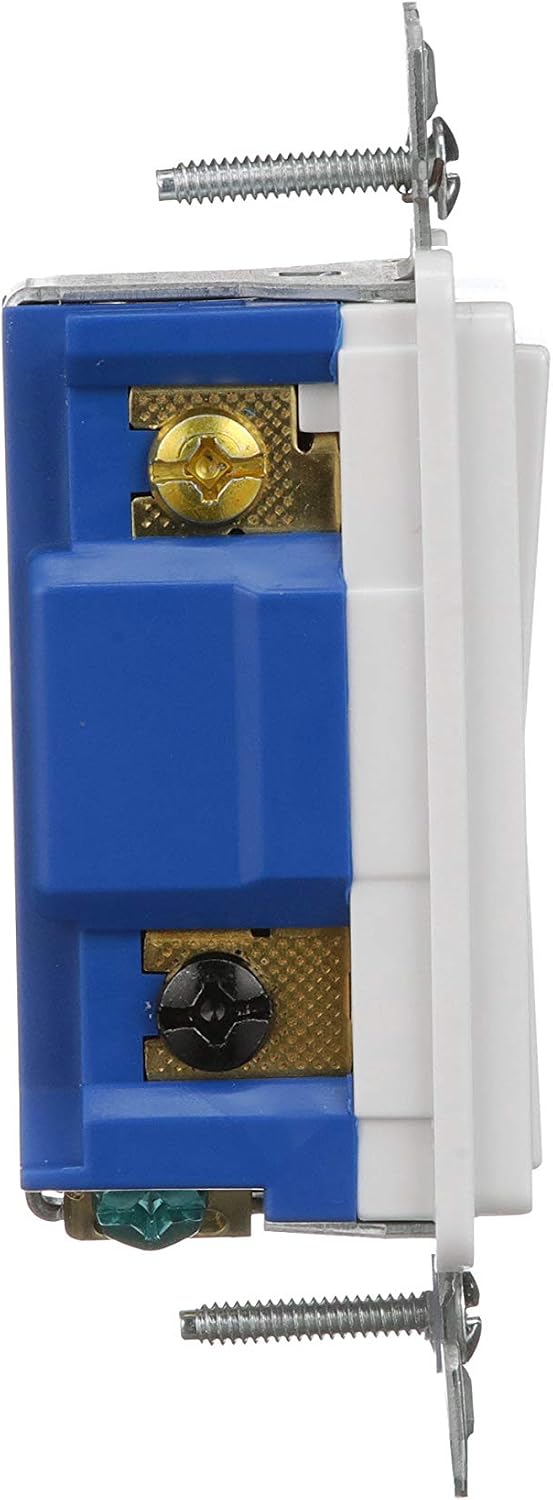

Eaton 7504W-SP-L 15-Amp, 120-Volt Standard Grade 4-Way Decorator Switch, White
Product details
| Management number | 229762483 | Release Date | 2026/05/31 | List Price | $3.82 | Model Number | 229762483 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Eaton 7504W-SP-L Decorator Rocker Switch has a white finish and is perfect for commercial or residential use. Tri-combo screws accept slotted-, Phillips, and Robertson-head tools for flexible installation options. The long, broad mounting strap virtually eliminates the need for floating installations. Push-in terminals accept no. 14 solid wire which can be stripped with the patented built-in wire stripper for no. 12 and no. 14 wire to make installation faster and easier. The stippled ground screw terminal is standard. This device is 120/277V/AC rated which makes it ideal for fluorescent lighting fixtures or incandescent lighting. The Eaton 7504B Decorator Rocker Switch comes with a 5-year limited warranty. Eaton is dedicated to providing the most up-to-date wiring device solutions; solutions that increase energy efficiency, increase productivity, promote safety at work and in the home and produce reliable performance. Eaton has been a trusted name in electrical products for over 175-years.
- Features ultrasonic welding and integrated construction of the strap and body in order to provide superior integrity
- Backwire clamps on the side terminals provide for easy installation of #12 and #14 wires
- Paddle has been designed for easier movement and quiet operation
- Thermoplastic rocker, top and backbody are virtually unbreakable, promising years of durable performance
- This is standard grade 4-way decorator switch
- Patented built-in wire stripper for No.14 and No.12 wire to speed installation
- Tri-combo screws accept slotted, Phillips and robertson-head tools for installation flexibility
- Redesigned paddle for easier actuation and quiet operation, long, broad mounting strap virtually eliminates floating installations
- Available in white color, measures 1-1/6-Inch length by 1-2/5-width by 3-4/5-Inch height
| UPC | 032664643941 032664643835 |
|---|---|
| ASIN | B00880C91C |
| Color | White |
| Model | 7504W-SP-L |
| Wattage | 162 watts |
| Terminal | Screw |
| Brand Name | Eaton |
| Unit Count | 1.0 Count |
| Item Weight | 0.2 Pounds |
| Part Number | 7504W/6504W-BOX |
| Switch Type | Rocker |
| Circuit Type | 4-way |
| Contact Type | Normally Open |
| Control Type | 4-way |
| Manufacturer | EATON |
| Actuator Type | Rocker |
| Material Type | Thermoplastic |
| Mounting Type | Surface Mount |
| Connector Type | Screws |
| Control Method | Touch |
| Current Rating | 15 Amps |
| Operation Mode | ON-ON-ON-OFF |
| Item Dimensions | 1.61 x 1.61 x 1.61 inches |
| Number of Items | 1 |
| Contact Material | Brass, Copper |
| Operating Voltage | 120 Volts |
| Specification Met | UL |
| Compatible Devices | Incandescent lighting fixtures, Fluorescent lighting fixtures, No.14 solid wire, No.12 solid wire, Slotted-head tools, Phillips-head tools, Robertson-head tools |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP00 |
| Global Trade Identification Number | 00032664643941 |
